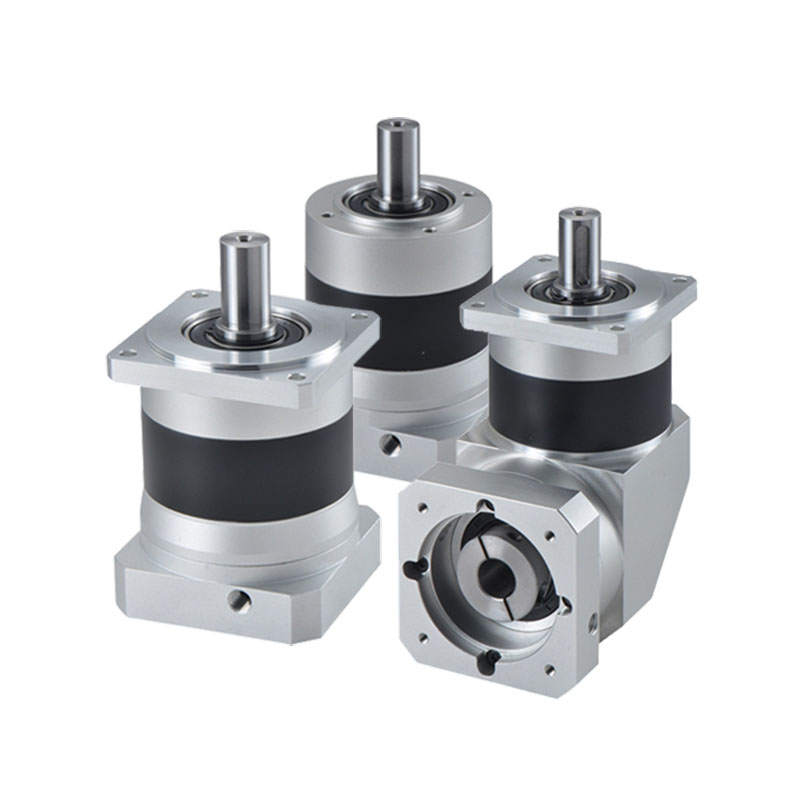

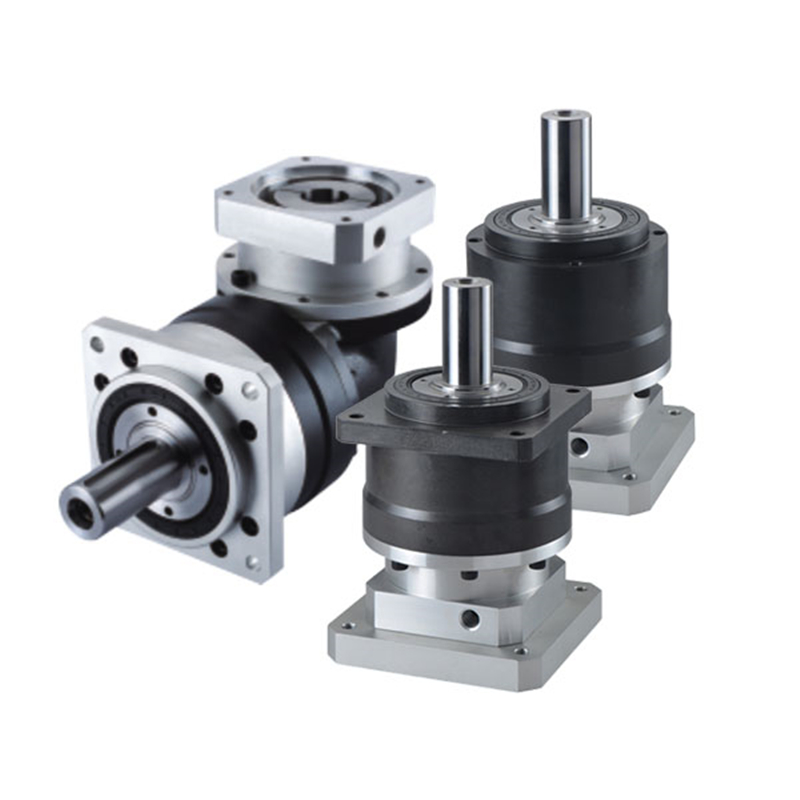

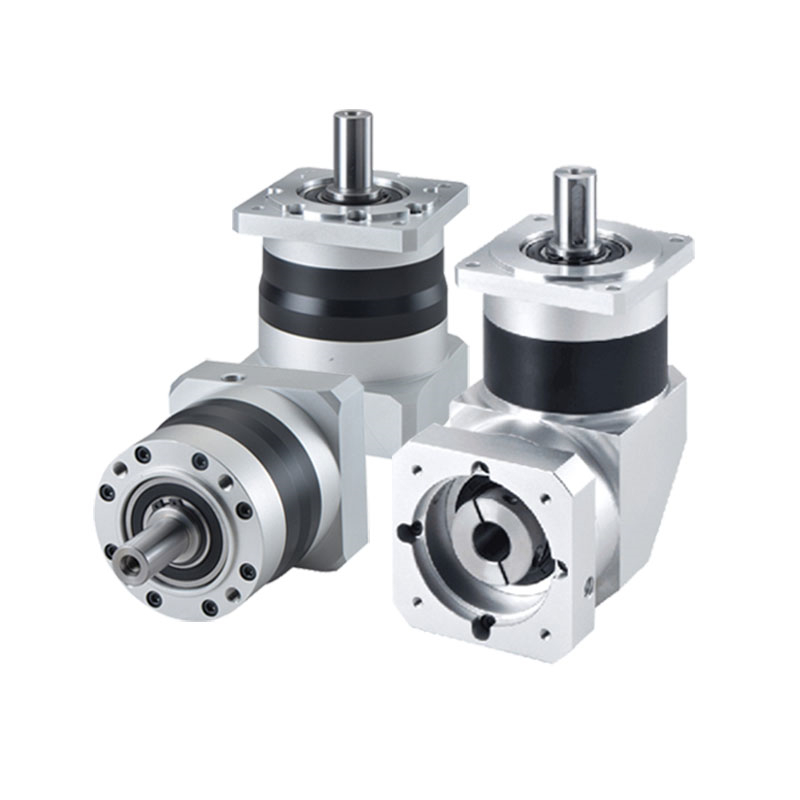

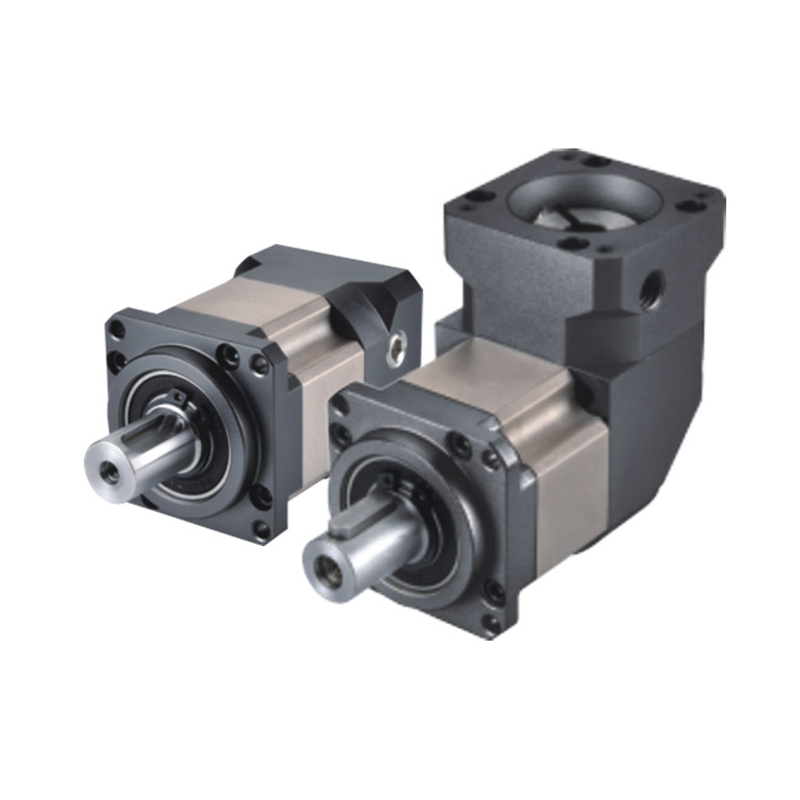

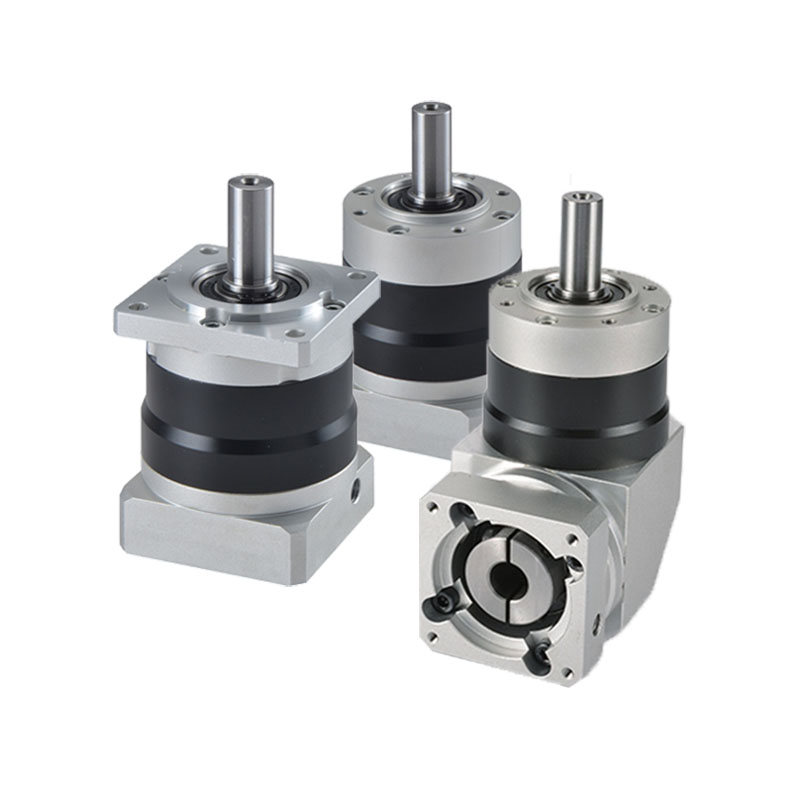

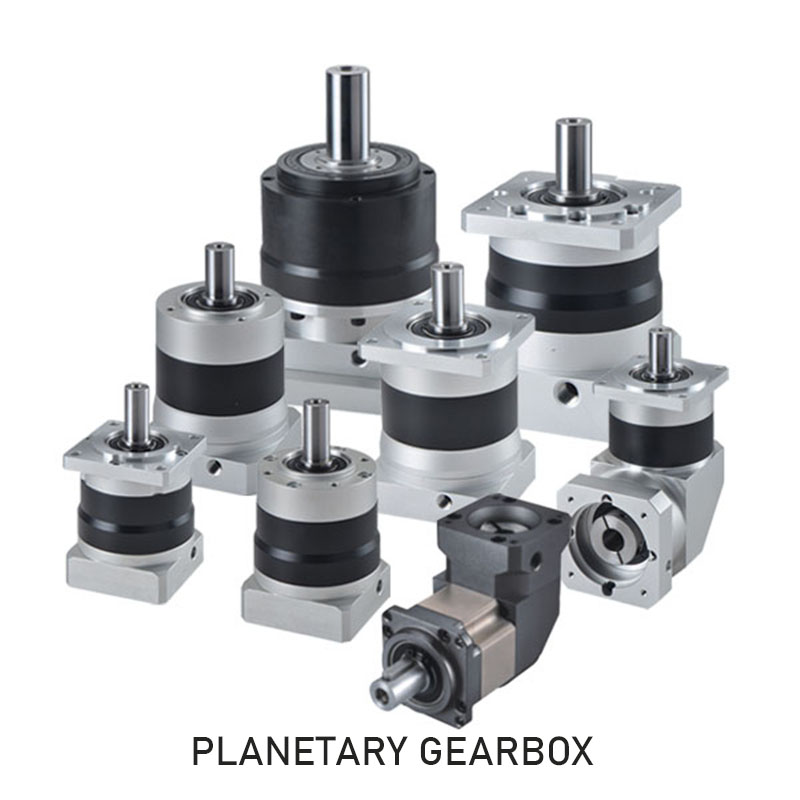

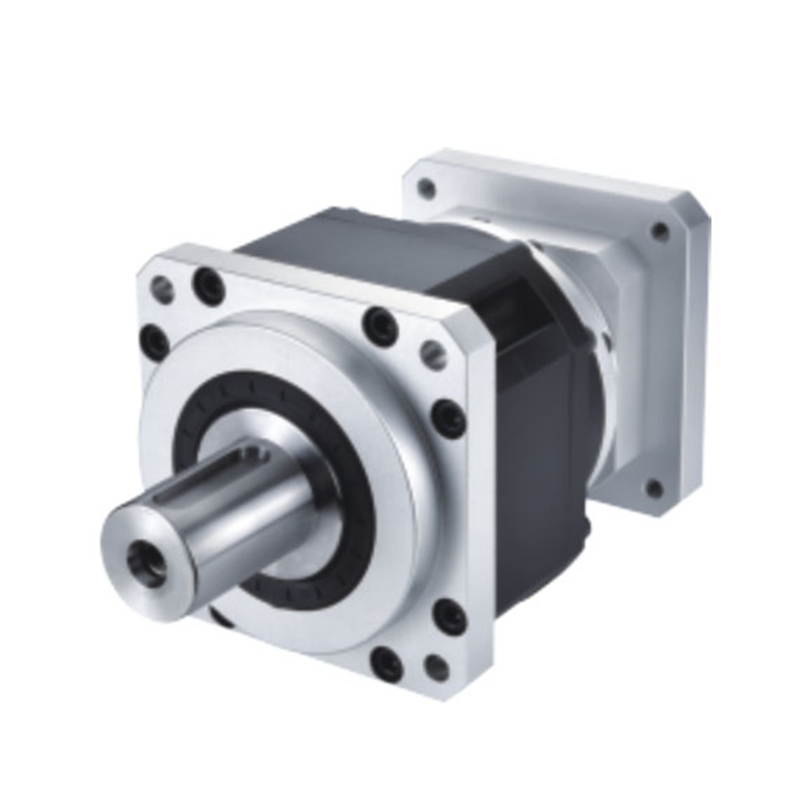

Planetary Gearbox

Category

Product	Model	Input Shaft Diameter	Input Stop	Reduction Ratio
42mm	PGF4205	5	22	3,4,5,8,12,16,20,25,32,35,40,56,64
42mm	PGF4208	8	30	3,4,5,8,12,16,20,25,32,35,40,56,64
42mm	PGZF4205	5	22	3,4,5,8,12,16,20,25,32,35,40,56,64
42mm	PGZF4208	8	30	3,4,5,8,12,16,20,25,32,35,40,56,64
60mm	PGF6008	8	30	3,4,5,7,10,12,16,20,25,28,35,40,50,70,80,100,125,140,175,200
60mm	PGF6014	14	50	3,4,5,7,10,12,16,20,25,28,35,40,50,70,80,100,125,140,175,200
60mm	PGF6019	19	70	3,4,5,7,10,12,16,20,25,28,35,40,50,70,80,100,125,140,175,200
60mm	PGZF6008	8	30	3,4,5,7,10,12,16,20,25,28,35,40,50,70,80,100,125,140,175,200
60mm	PGZF6014	14	50	3,4,5,7,10,12,16,20,25,28,35,40,50,70,80,100,125,140,175,200
60mm	PGZF6019	19	70	3,4,5,7,10,12,16,20,25,28,35,40,50,70,80,100,125,140,175,200
90mm	PGF9014	14	50	3,4,5,7,10,12,16,20,25,28,35,40,50,70,80,100,125,140,175,200
90mm	PGF9019	19	70	3,4,5,7,10,12,16,20,25,28,35,40,50,70,80,100,125,140,175,200
90mm	PGF9022	22	110	3,4,5,7,10,12,16,20,25,28,35,40,50,70,80,100,125,140,175,200
90mm	PGZF9014	14	50	3,4,5,7,10,12,16,20,25,28,35,40,50,70,80,100,125,140,175,200
90mm	PGZF9019	19	70	3,4,5,7,10,12,16,20,25,28,35,40,50,70,80,100,125,140,175,200
90mm	PGZF9022	22	110	3,4,5,7,10,12,16,20,25,28,35,40,50,70,80,100,125,140,175,200
120mm	PGF12019	19	70	3,4,5,7,10,12,16,20,25,28,35,40,50,70,80,100,125,140,175,200
120mm	PGF12022	22	110	3,4,5,7,10,12,16,20,25,28,35,40,50,70,80,100,125,140,175,200
120mm	PGF12032	32	130	3,4,5,7,10,12,16,20,25,28,35,40,50,70,80,100,125,140,175,200
120mm	PGZF12019	19	70	3,4,5,7,10,12,16,20,25,28,35,40,50,70,80,100,125,140,175,200
120mm	PGZF12022	22	110	3,4,5,7,10,12,16,20,25,28,35,40,50,70,80,100,125,140,175,200
120mm	PGZF12032	32	130	3,4,5,7,10,12,16,20,25,28,35,40,50,70,80,100,125,140,175,200
160mm	PGF16022	22	110	3,4,5,8,12,16,20,25,32,35,40,56,64,80,100,125,160,200,256,280
160mm	PGF16035	35	114.3	3,4,5,8,12,16,20,25,32,35,40,56,64,80,100,125,160,200,256,280
160mm	PGF16038	38	180	3,4,5,8,12,16,20,25,32,35,40,56,64,80,100,125,160,200,256,280
160mm	PGZF16022	22	110	3,4,5,8,12,16,20,25,32,35,40,56,64,80,100,125,160,200,256,280
160mm	PGZF16035	35	114.3	3,4,5,8,12,16,20,25,32,35,40,56,64,80,100,125,160,200,256,280
160mm	PGZF16038	38	180	3,4,5,8,12,16,20,25,32,35,40,56,64,80,100,125,160,200,256,280
185mm	PGF18535	35	114.3	3,4,5,7,10,12,16,20,25,28,35,40,50,70,80,100,125,140,175,200
185mm	PGF18555	55	200	3,4,5,7,10,12,16,20,25,28,35,40,50,70,80,100,125,140,175,200
