With Gearbox and Brake

Category

Product	Model	Motor Holding Torque(N.m)	Current(A)	Reduction Ratio	Matched driver

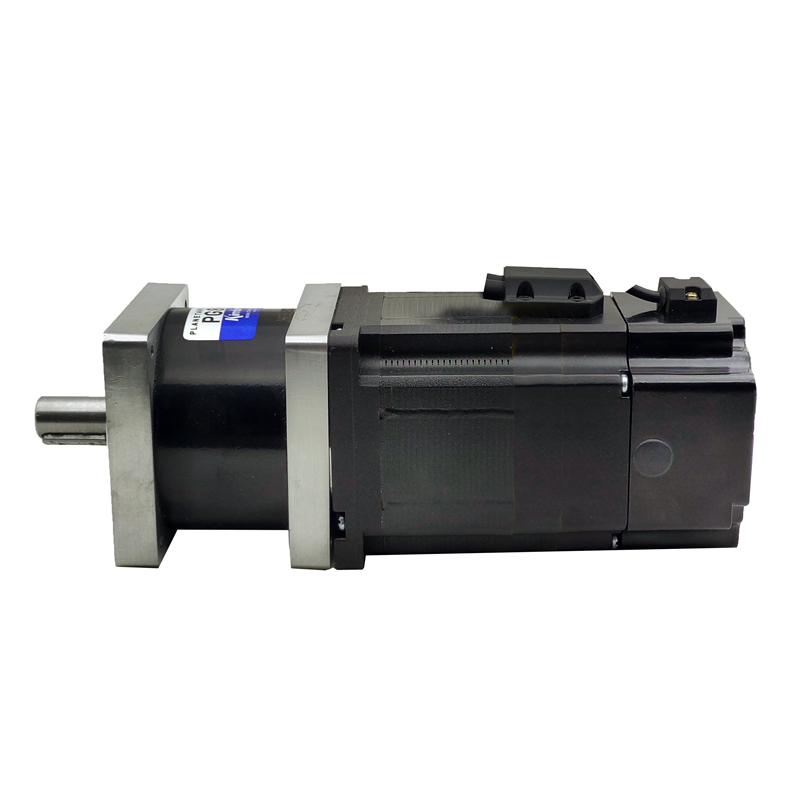

Planetary and Brake NEMA17	42HSEPGB33	0.2	1.5	4,5,10,16,20,25,40,50,100	HSE42
Planetary and Brake NEMA17	42HSEPGB38	0.4	1.5	4,5,10,16,20,25,40,50,100	HSE42
Planetary and Brake NEMA17	42HSEPGB47	0.6	2.5	4,5,10,16,20,25,40,50,100	HSE42
Planetary and Brake NEMA17	42HSEPGB60	0.8	2.5	4,5,10,16,20,25,40,50,100	HSE42
Planetary and Brake NEMA23	57HSEPGB56	1.3	4	4,5,10,16,20,25,40,50,100	HSE57
Planetary and Brake NEMA23	57HSEPGB76	2.3	4	4,5,10,16,20,25,40,50,100	HSE57
Planetary and Brake NEMA23	57HSEPGB85	2.6	4	4,5,10,16,20,25,40,50,100	HSE57
Planetary and Brake NEMA23	57HSEPGB102	3	4	4,5,10,16,20,25,40,50,100	HSE57
Planetary and Brake NEMA23	57HSEPGB112	3.5	4	4,5,10,16,20,25,40,50,100	HSE57
Planetary and Brake NEMA24	60HSEPGB58	1.7	5.8	4,5,10,16,20,25,40,50,100	HSE57
Planetary and Brake NEMA24	60HSEPGB65	2.1	5.8	4,5,10,16,20,25,40,50,100	HSE57
Planetary and Brake NEMA24	60HSEPGB78	2.6	5.8	4,5,10,16,20,25,40,50,100	HSE57
Planetary and Brake NEMA24	60HSEPGB84	3.0	5.8	4,5,10,16,20,25,40,50,100	HSE57
Planetary and Brake NEMA24	60HSEPGB102	4.5	5.8	4,5,10,16,20,25,40,50,100	HSE57
Planetary and Brake NEMA24	60HSEPGB112	4.8	5.8	4,5,10,16,20,25,40,50,100	HSE57
Planetary and Brake NEMA24	60HSEPGB125	5.5	5.8	4,5,10,16,20,25,40,50,100	HSE57
Planetary and Brake NEMA34	86HSEPGB65	3.5	6	4,5,10,16,20,25,40,50,100	HSE86
Planetary and Brake NEMA34	86HSEPGB80	5	6	4,5,10,16,20,25,40,50,100	HSE86
Planetary and Brake NEMA34	86HSEPGB118	8.5	6	4,5,10,16,20,25,40,50,100	HSE86
Planetary and Brake NEMA34	86HSEPGB128	10	6	4,5,10,16,20,25,40,50,100	HSE86
Planetary and Brake NEMA34	86HSEPGB150	12.5	6	4,5,10,16,20,25,40,50,100	HSE86

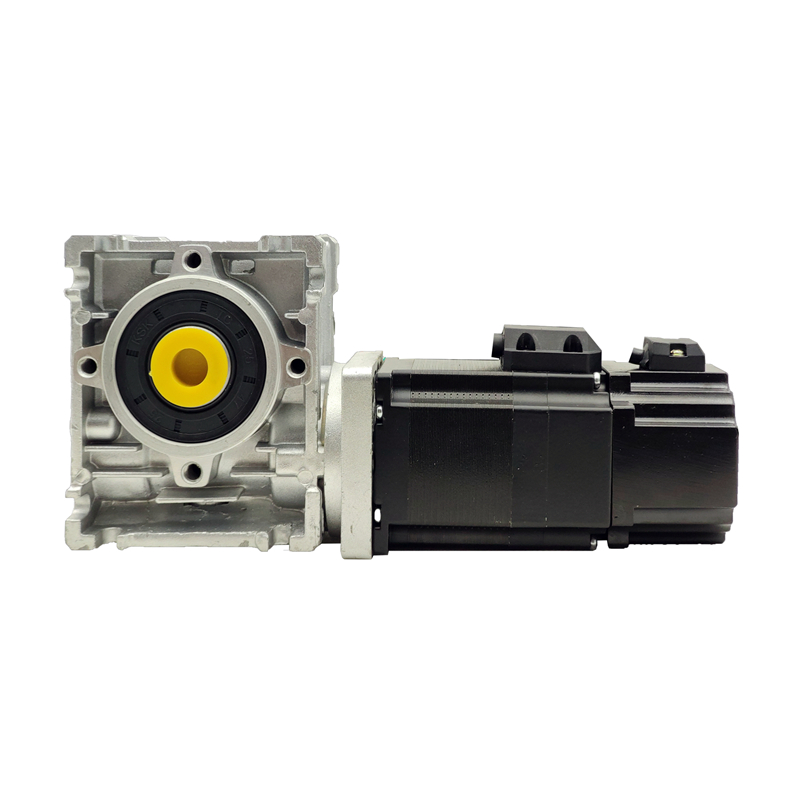

Worm and Brake NEMA23	57HSEWGB56	1.3	4	5,7.5,10,15,20,25,30,40,50,60,80	HSE57
Worm and Brake NEMA23	57HSEWGB76	2.3	4	5,7.5,10,15,20,25,30,40,50,60,80	HSE57
Worm and Brake NEMA23	57HSEWGB85	2.6	4	5,7.5,10,15,20,25,30,40,50,60,80	HSE57
Worm and Brake NEMA23	57HSEWGB102	3	4	5,7.5,10,15,20,25,30,40,50,60,80	HSE57
Worm and Brake NEMA23	57HSEWGB112	3.5	4	5,7.5,10,15,20,25,30,40,50,60,80	HSE57
Worm and Brake NEMA24	60HSEWGB58	1.7	5.8	5,7.5,10,15,20,25,30,40,50,60,80	HSE57
Worm and Brake NEMA24	60HSEWGB65	2.1	5.8	5,7.5,10,15,20,25,30,40,50,60,80	HSE57
Worm and Brake NEMA24	60HSEWGB78	2.6	5.8	5,7.5,10,15,20,25,30,40,50,60,80	HSE57
Worm and Brake NEMA24	60HSEWGB84	3.0	5.8	5,7.5,10,15,20,25,30,40,50,60,80	HSE57
Worm and Brake NEMA24	60HSEWGB102	4.5	5.8	5,7.5,10,15,20,25,30,40,50,60,80	HSE57
Worm and Brake NEMA24	60HSEWGB112	4.8	5.8	5,7.5,10,15,20,25,30,40,50,60,80	HSE57
Worm and Brake NEMA24	60HSEWGB125	5.5	5.8	5,7.5,10,15,20,25,30,40,50,60,80	HSE57
Worm and Brake NEMA34	86HSEWGB65	3.5	6	5,7.5,10,15,20,25,30,40,50,60,80,100	HSE86
Worm and Brake NEMA34	86HSEWGB80	5	6	5,7.5,10,15,20,25,30,40,50,60,80,100	HSE86
Worm and Brake NEMA34	86HSEWGB118	8.5	6	5,7.5,10,15,20,25,30,40,50,60,80,100	HSE86
Worm and Brake NEMA34	86HSEWGB128	10	6	5,7.5,10,15,20,25,30,40,50,60,80,100	HSE86
Worm and Brake NEMA34	86HSEWGB150	12.5	6	5,7.5,10,15,20,25,30,40,50,60,80,100	HSE86

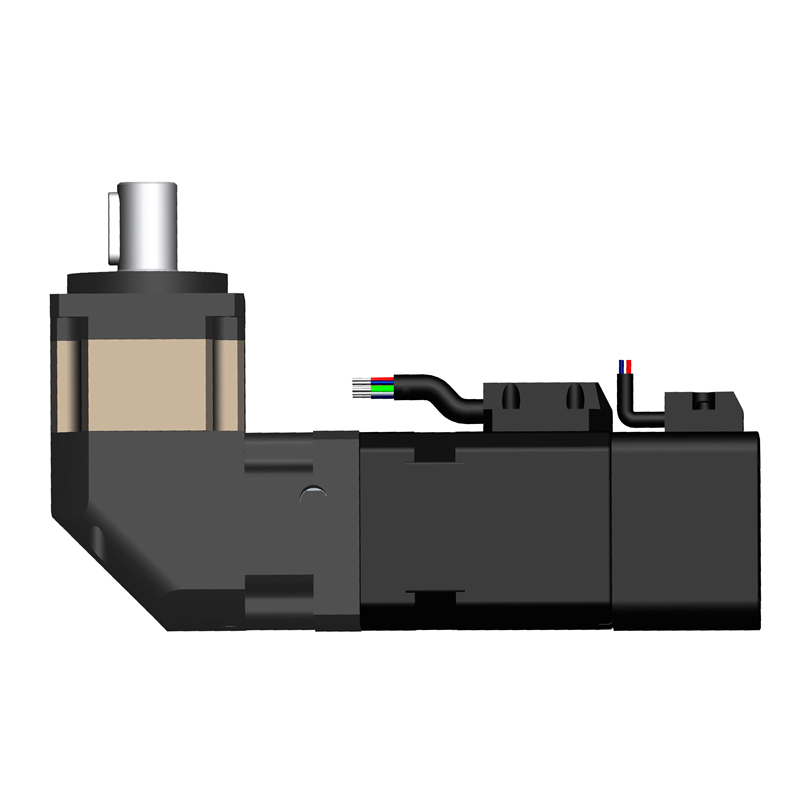

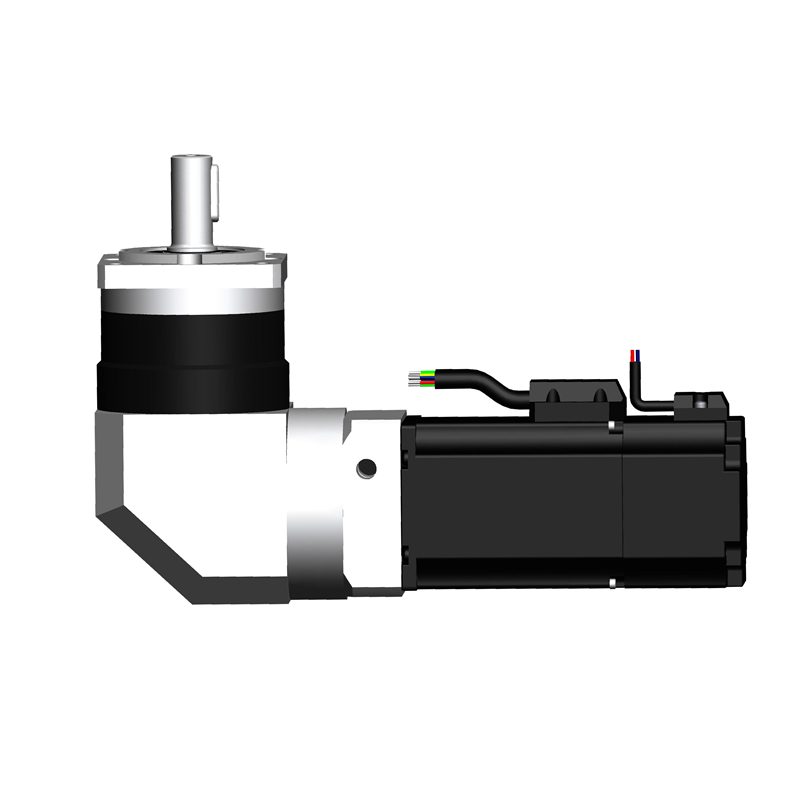

Right-angle Planetary and Brake NEMA17	42HSEZPGB33	0.2	1.5	3,4,5,8,10,12,16,20,25,32,35,40,56,64	HSE42
Right-angle Planetary and Brake NEMA17	42HSEZPGB38	0.4	1.5	3,4,5,8,10,12,16,20,25,32,35,40,56,64	HSE42
Right-angle Planetary and Brake NEMA17	42HSEZPGB47	0.6	2.5	3,4,5,8,10,12,16,20,25,32,35,40,56,64	HSE42
Right-angle Planetary and Brake NEMA17	42HSEZPGB60	0.8	2.5	3,4,5,8,10,12,16,20,25,32,35,40,56,64	HSE42
Right-angle Planetary and Brake NEMA23	57HSEZPGB56	1.3	4	3,4,5,7,10,12,16,20,25,28,35,40,50,70	HSE57
Right-angle Planetary and Brake NEMA23	57HSEZPGB76	2.3	4	3,4,5,7,10,12,16,20,25,28,35,40,50,70	HSE57
Right-angle Planetary and Brake NEMA23	57HSEZPGB85	2.6	4	3,4,5,7,10,12,16,20,25,28,35,40,50,70	HSE57
Right-angle Planetary and Brake NEMA23	57HSEZPGB102	3	4	3,4,5,7,10,12,16,20,25,28,35,40,50,70	HSE57
Right-angle Planetary and Brake NEMA23	57HSEZPGB112	3.5	4	3,4,5,7,10,12,16,20,25,28,35,40,50,70	HSE57
Right-angle Planetary and Brake NEMA34(86mm)	86HSEZPGB65	3.5	6	3,4,5,7,10,12,16,20,25,28,35,40,50,70	HSE86
Right-angle Planetary and Brake NEMA34(86mm)	86HSEZPGB80	5	6	3,4,5,7,10,12,16,20,25,28,35,40,50,70	HSE86
Right-angle Planetary and Brake NEMA34(86mm)	86HSEZPGB118	8.5	6	3,4,5,7,10,12,16,20,25,28,35,40,50,70	HSE86
Right-angle Planetary and Brake NEMA34(86mm)	86HSEZPGB128	10	6	3,4,5,7,10,12,16,20,25,28,35,40,50,70	HSE86
Right-angle Planetary and Brake NEMA34(86mm)	86HSEZPGB150	12.5	6	3,4,5,7,10,12,16,20,25,28,35,40,50,70	HSE86
