Category

Product	Model	Motor Holding Torque(N.m)	Current(A)	Reduction Ratio	Matched driver

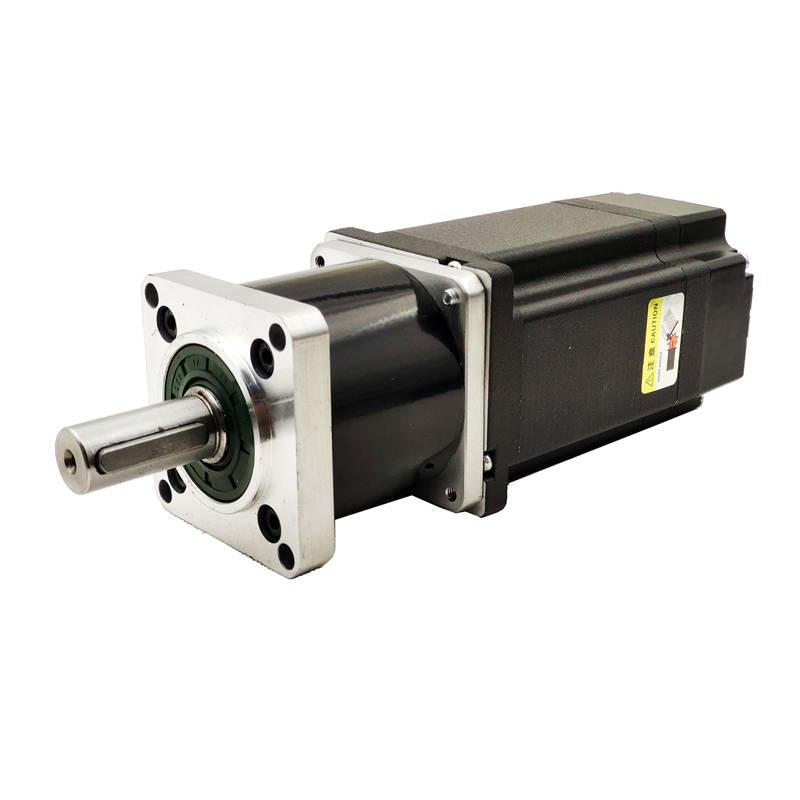

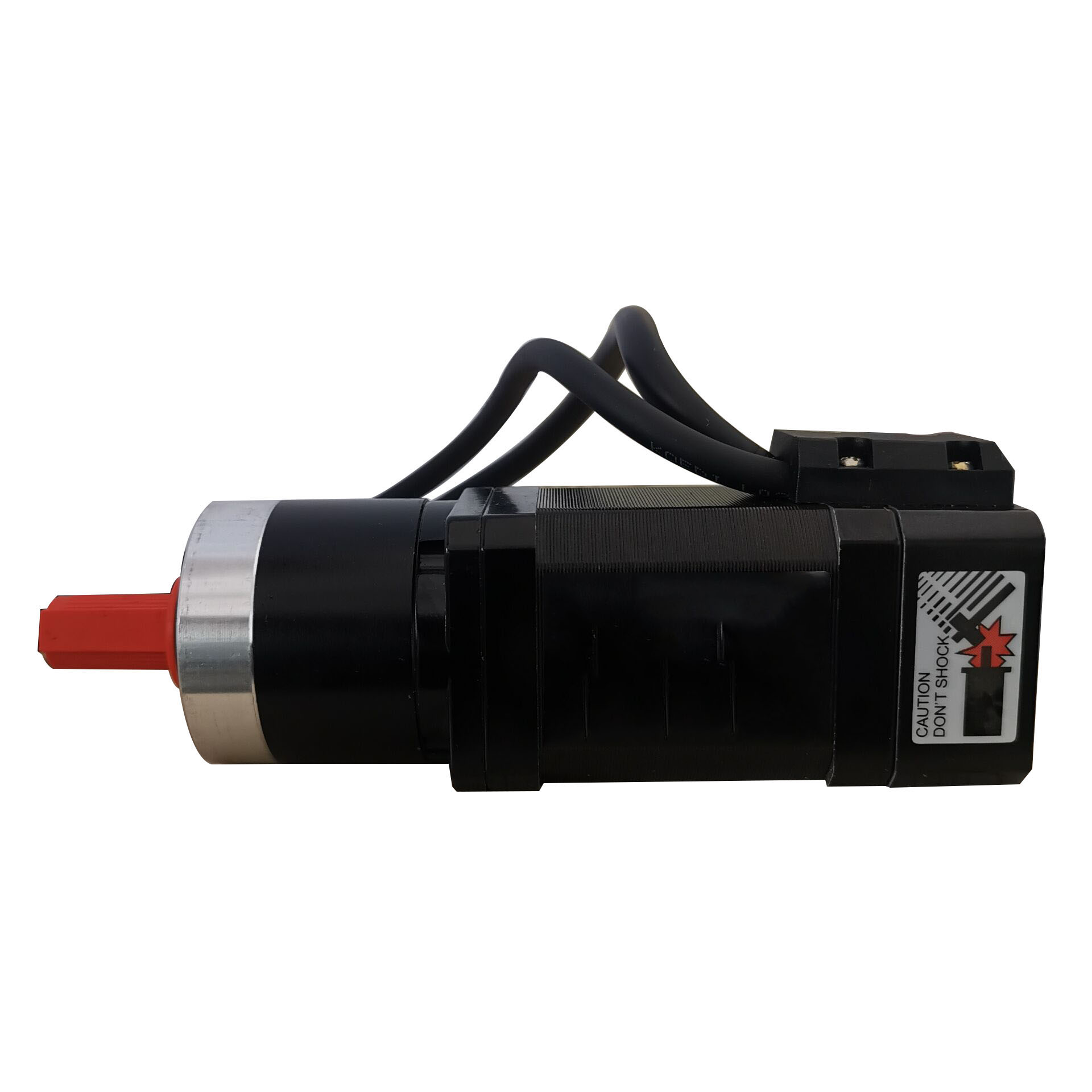

Planetary NEMA17(42mm)	42HSEPG33	0.2	1.5	4,5,10,16,20,25,40,50,100	HSE42
Planetary NEMA17(42mm)	42HSEPG38	0.4	1.5	4,5,10,16,20,25,40,50,100	HSE42
Planetary NEMA17(42mm)	42HSEPG47	0.6	2.5	4,5,10,16,20,25,40,50,100	HSE42
Planetary NEMA17(42mm)	42HSEPG60	0.8	2.5	4,5,10,16,20,25,40,50,100	HSE42

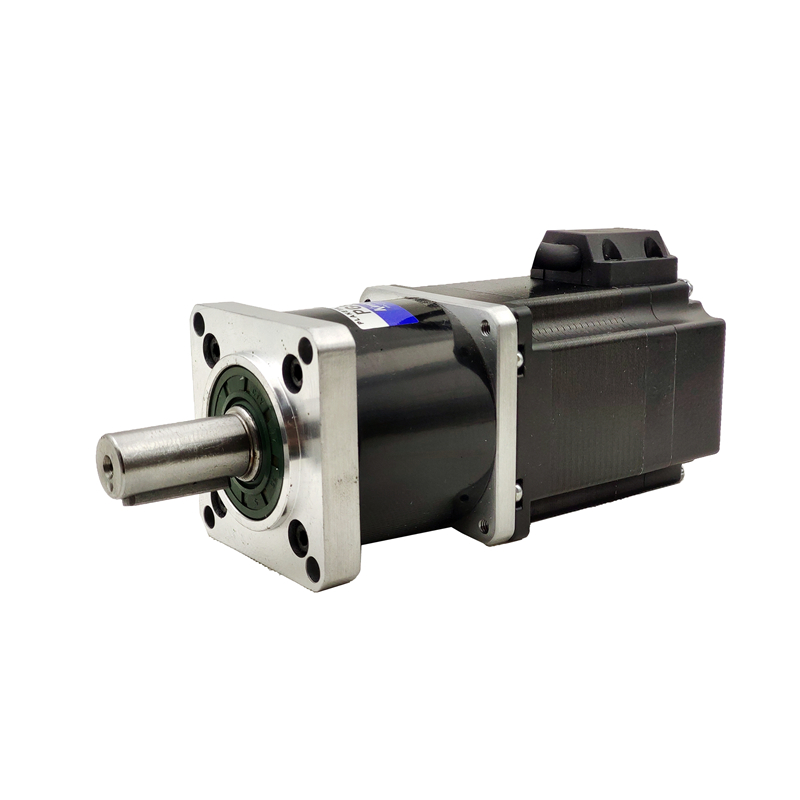

Planetary NEMA23(57mm)	57HSEPG56	1.3	4	4,5,10,16,20,25,40,50,100	HSE57
Planetary NEMA23(57mm)	57HSEPG76	2.3	4	4,5,10,16,20,25,40,50,100	HSE57
Planetary NEMA23(57mm)	57HSEPG85	2.6	4	4,5,10,16,20,25,40,50,100	HSE57
Planetary NEMA23(57mm)	57HSEPG102	3	4	4,5,10,16,20,25,40,50,100	HSE57
Planetary NEMA23(57mm)	57HSEPG112	3.5	4	4,5,10,16,20,25,40,50,100	HSE57
Planetary NEMA24(60mm)	60HSEPG58	1.7	5.8	4,5,10,16,20,25,40,50,100	HSE57
Planetary NEMA24(60mm)	60HSEPG65	2.1	5.8	4,5,10,16,20,25,40,50,100	HSE57
Planetary NEMA24(60mm)	60HSEPG78	2.6	5.8	4,5,10,16,20,25,40,50,100	HSE57
Planetary NEMA24(60mm)	60HSEPG84	3.0	5.8	4,5,10,16,20,25,40,50,100	HSE57
Planetary NEMA24(60mm)	60HSEPG102	4.5	5.8	4,5,10,16,20,25,40,50,100	HSE57
Planetary NEMA24(60mm)	60HSEPG112	4.8	5.8	4,5,10,16,20,25,40,50,100	HSE57
Planetary NEMA24(60mm)	60HSEPG125	5.5	5.8	4,5,10,16,20,25,40,50,100	HSE57

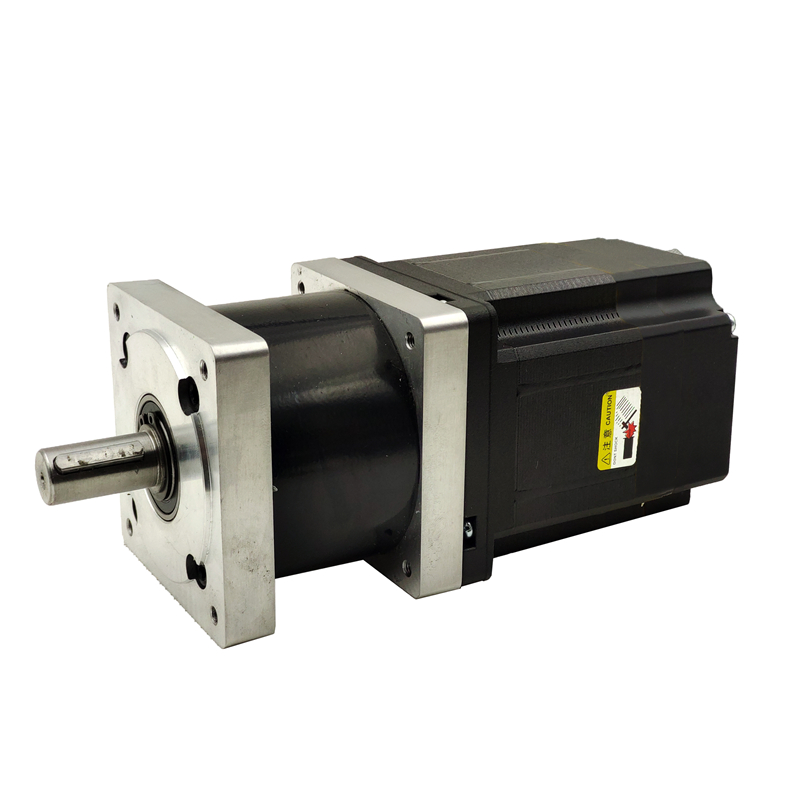

Planetary NEMA34(86mm)	86HSEPG65	3.5	6	4,5,10,16,20,25,40,50,100	HSE86
Planetary NEMA34(86mm)	86HSEPG80	5	6	4,5,10,16,20,25,40,50,100	HSE86
Planetary NEMA34(86mm)	86HSEPG118	8.5	6	4,5,10,16,20,25,40,50,100	HSE86
Planetary NEMA34(86mm)	86HSEPG128	10	6	4,5,10,16,20,25,40,50,100	HSE86
Planetary NEMA34(86mm)	86HSEPG150	12.5	6	4,5,10,16,20,25,40,50,100	HSE86

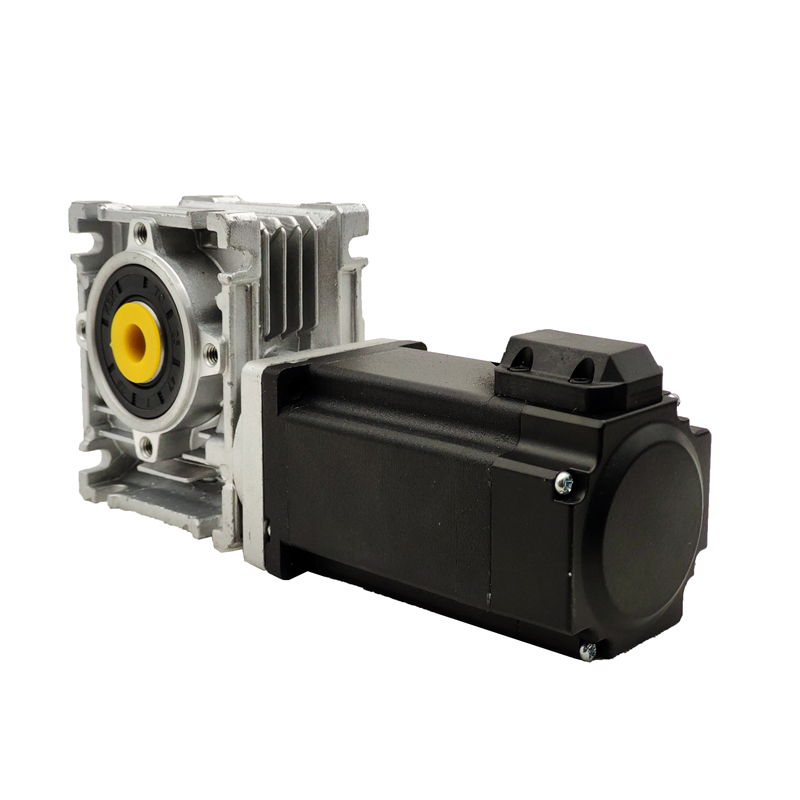

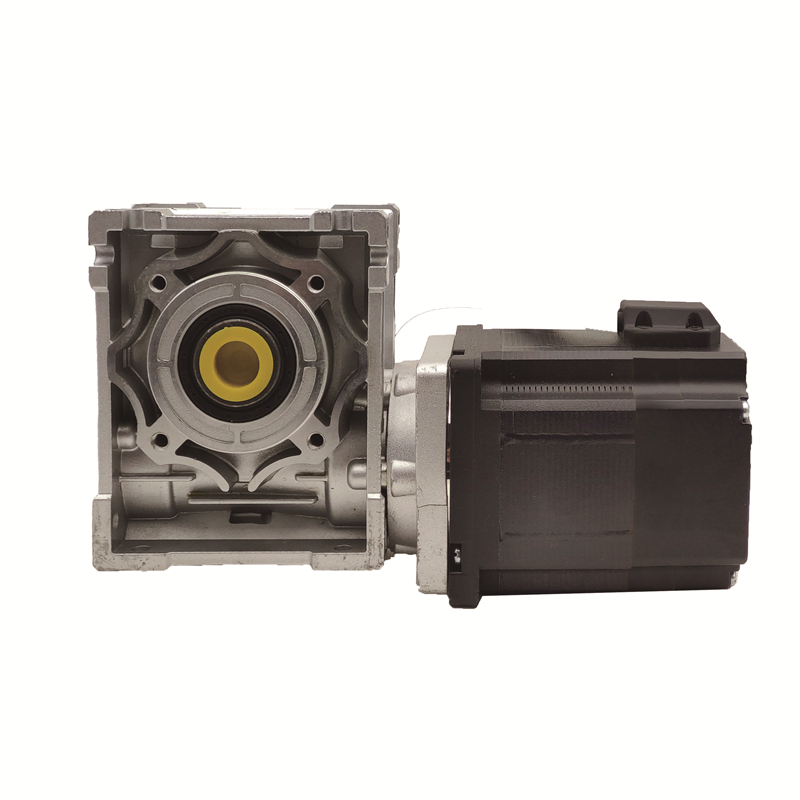

Worm NEMA23(57mm)	57HSEWG56	1.3	4	5,7.5,10,15,20,25,30,40,50,60,80	HSE57
Worm NEMA23(57mm)	57HSEWG76	2.3	4	5,7.5,10,15,20,25,30,40,50,60,80	HSE57
Worm NEMA23(57mm)	57HSEWG85	2.6	4	5,7.5,10,15,20,25,30,40,50,60,80	HSE57
Worm NEMA23(57mm)	57HSEWG102	3	4	5,7.5,10,15,20,25,30,40,50,60,80	HSE57
Worm NEMA23(57mm)	57HSEWG112	3.5	4	5,7.5,10,15,20,25,30,40,50,60,80	HSE57
Worm NEMA24(60mm)	60HSEWG58	1.7	5.8	5,7.5,10,15,20,25,30,40,50,60,80	HSE57
Worm NEMA24(60mm)	60HSEWG65	2.1	5.8	5,7.5,10,15,20,25,30,40,50,60,80	HSE57
Worm NEMA24(60mm)	60HSEWG78	2.6	5.8	5,7.5,10,15,20,25,30,40,50,60,80	HSE57
Worm NEMA24(60mm)	60HSEWG84	3.0	5.8	5,7.5,10,15,20,25,30,40,50,60,80	HSE57
Worm NEMA24(60mm)	60HSEWG102	4.5	5.8	5,7.5,10,15,20,25,30,40,50,60,80	HSE57
Worm NEMA24(60mm)	60HSEWG112	4.8	5.8	5,7.5,10,15,20,25,30,40,50,60,80	HSE57
Worm NEMA24(60mm)	60HSEWG125	5.5	5.8	5,7.5,10,15,20,25,30,40,50,60,80	HSE57
Worm NEMA34(86mm)	86HSEWG65	3.5	6	5,7.5,10,15,20,25,30,40,50,60,80,100	HSE86
Worm NEMA34(86mm)	86HSEWG80	5	6	5,7.5,10,15,20,25,30,40,50,60,80,100	HSE86
Worm NEMA34(86mm)	86HSEWG118	8.5	6	5,7.5,10,15,20,25,30,40,50,60,80,100	HSE86
Worm NEMA34(86mm)	86HSEWG128	10	6	5,7.5,10,15,20,25,30,40,50,60,80,100	HSE86
Worm NEMA34(86mm)	86HSEWG150	12.5	6	5,7.5,10,15,20,25,30,40,50,60,80,100	HSE86

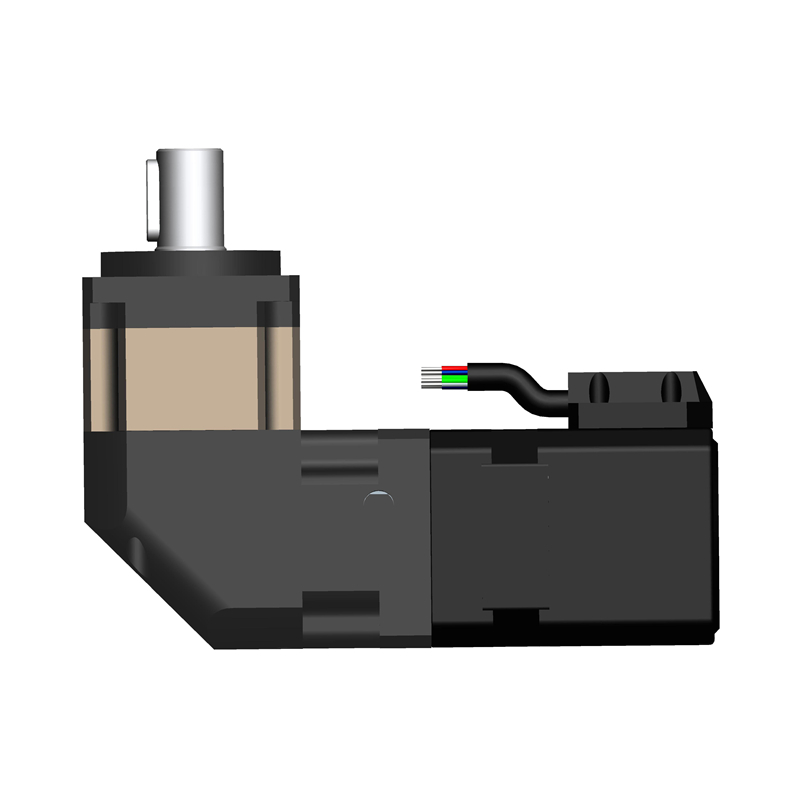

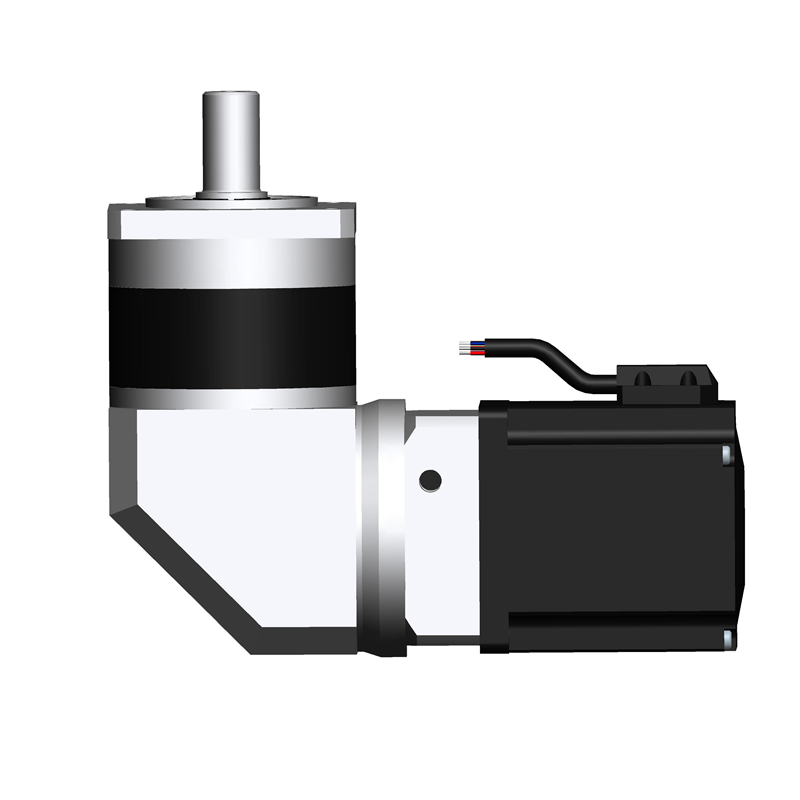

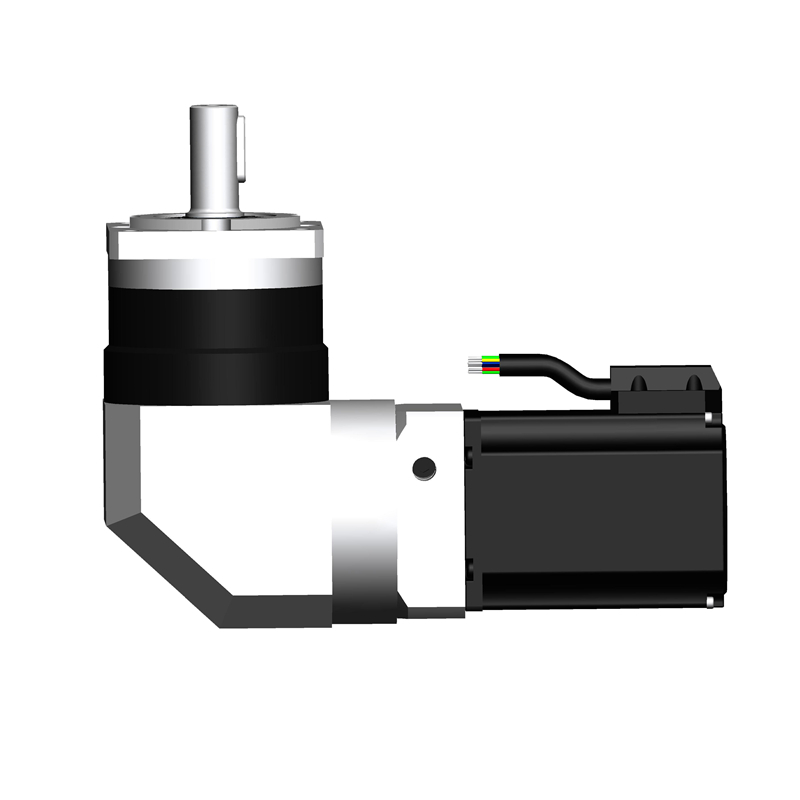

Right-angle Planetary NEMA17(42mm)	42HSEZPG33	0.2	1.5	3,4,5,8,10,12,16,20,25,32,35,40,56,64	HSE42
Right-angle Planetary NEMA17(42mm)	42HSEZPG38	0.4	1.5	3,4,5,8,10,12,16,20,25,32,35,40,56,64	HSE42
Right-angle Planetary NEMA17(42mm)	42HSEZPG47	0.6	2.5	3,4,5,8,10,12,16,20,25,32,35,40,56,64	HSE42
Right-angle Planetary NEMA17(42mm)	42HSEZPG60	0.8	2.5	3,4,5,8,10,12,16,20,25,32,35,40,56,64	HSE42
Right-angle Planetary NEMA23(57mm)	57HSEZPG56	1.3	4	3,4,5,7,10,12,16,20,25,28,35,40,50,70	HSE57
Right-angle Planetary NEMA23(57mm)	57HSEZPG76	2.3	4	3,4,5,7,10,12,16,20,25,28,35,40,50,70	HSE57
Right-angle Planetary NEMA23(57mm)	57HSEZPG85	2.6	4	3,4,5,7,10,12,16,20,25,28,35,40,50,70	HSE57
Right-angle Planetary NEMA23(57mm)	57HSEZPG102	3	4	3,4,5,7,10,12,16,20,25,28,35,40,50,70	HSE57
Right-angle Planetary NEMA23(57mm)	57HSEZPG112	3.5	4	3,4,5,7,10,12,16,20,25,28,35,40,50,70	HSE57
Right-angle Planetary NEMA34(86mm)	86HSEZPG65	3.5	6	3,4,5,7,10,12,16,20,25,28,35,40,50,70	HSE86
Right-angle Planetary NEMA34(86mm)	86HSEZPG80	5	6	3,4,5,7,10,12,16,20,25,28,35,40,50,70	HSE86
Right-angle Planetary NEMA34(86mm)	86HSEZPG118	8.5	6	3,4,5,7,10,12,16,20,25,28,35,40,50,70	HSE86
Right-angle Planetary NEMA34(86mm)	86HSEZPG128	10	6	3,4,5,7,10,12,16,20,25,28,35,40,50,70	HSE86
Right-angle Planetary NEMA34(86mm)	86HSEZPG150	12.5	6	3,4,5,7,10,12,16,20,25,28,35,40,50,70	HSE86
